YC/YCL SERIES

SINGLE PHASE CAPACITOR START INDUCTION ELECTRIC MOTOR

Classification:

YC/YCL

Telphone:

0086-576-83479666

Message

YC/YCL SERIES

Details

TECHNICAL DATA
Ambient temperature: -15℃≤0≤40℃
Altitude: not exceeding 1000m
Rated voltage: 220V
Rated frequency: 50Hz、60Hz
Protection class: IP44、 IP54
Insulation class: B、F
Cooling method: ICO141
Duty: S1(continuous)

PRODUCT OVERVIEW
YC series motor is a fully enclosed single- phase asynchronous motor with the latest design. With features like simple structure, reliable performance, easy maintenance and achievement of technical- economic targets, the products have been widely used in the air compressor, pump, refrigerator, washing machine, medical equipment, wood-working machinery, all kinds of agricultural and so on. YC motor series have Protection Class of E or B, Cooling Method of IC411.

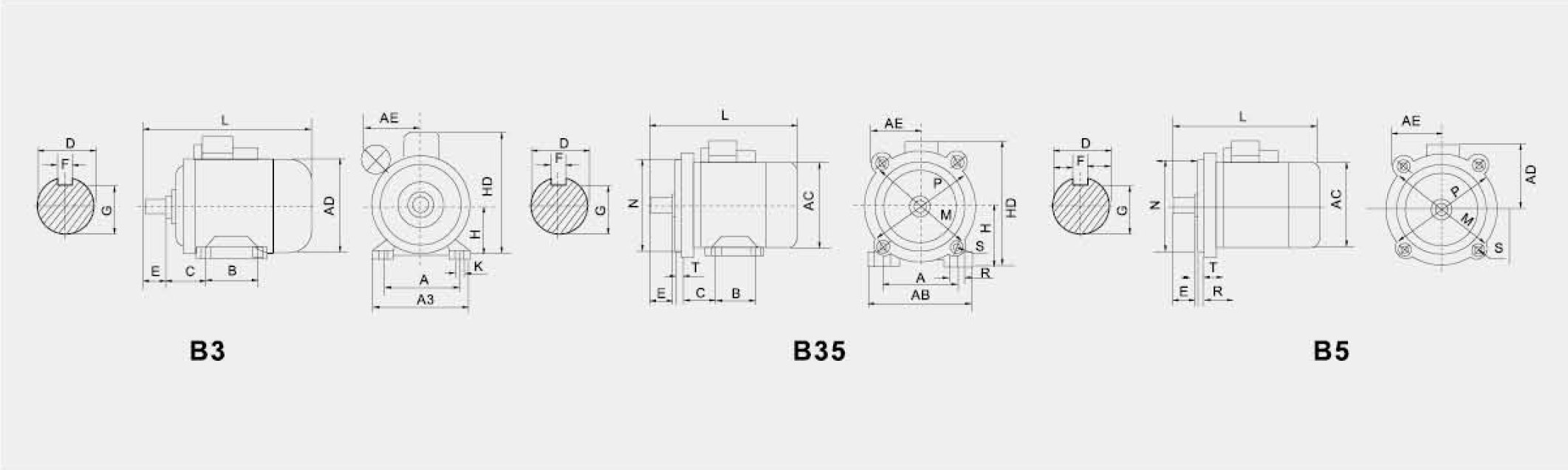

OVERALL & INSTALLTION DIEMSIONS

Frame size	Mounting Dimensions (mm)															Overall Dimensions (mm) I
Frame size	A	B	C	D	E	F	G	H	K	M	N	P	R	S	T	AB	AC	AE	AD	HD	L
80	125	100	50	19	40	6	15.5	80	10	165	130	200	0	12	3.5	160	165	110	120	200	310
90S	140	100	56	24	50	8	20	90	10	165	130	200	0	12	3.5	180	185	120	140	240	370
90L	140	125	56	24	50	8	20	90	10	165	130	200	0	12	3.5	180	185	120	140	240	400
100L	160	140	63	28	60	8	24	100	12	215	180	250	0	15	4.0	205	220	130	145	260	430
112M	190	140	70	28	60	8	24	112	12	215	180	250	0	15	4.0	245	250	140	160	300	455
132S	216	140	89	38	80	10	33	132	12	265	230	300	0	15	4.0	280	262	150	210	350	525
132M	216	178	89	38	80	10	33	132	12	265	230	300	0	15	4.0	280	262	150	210	350	553

TECHNICAL DATE

Type	Output		Voltage (V)	frequency (HZ)	Current (A)	Speed (r/mln)	Eff (%)	Power factor	Tstart/Tn	lst/ln	Tmax/Tn
Type	HP	KW	Voltage (V)	frequency (HZ)	Current (A)	Speed (r/mln)	Eff (%)	Power factor	Tstart/Tn	lst/ln	Tmax/Tn
YC80a-2	0.5	0.37	220	50	3.7	2880	66	0.74	3	6.5	2
YC80b-2	0.75	0.55	220	50	5.3	2880	67	0.74	3	6.5	2
YC80C-2	1	0.75	220	50	6.7	2880	68	0.75	3	6.5	2
YC90S-2	1.5	1.1	220	50	9.1	2880	71	0.8	2.8	7	2
YC90L-2	2	1.5	220	50	12.1	2880	72	0.82	2.8	7	2
YC100L-2	3	2.2	220	50	17.1	2900	74	0.82	2.5	7	2
YC112M1-2	4	3	220	50	21.4	2900	76	0.84	2.2	7	2
YC112M2-2	5	3.7	220	50	24.8	2900	79	0.86	2.2	7	2
YC80a-4	0.33	0.25	220	50	3.4	1450	56	0.62	3	6	2
YC80b-4	0.5	0.37	220	50	4.5	1450	60	0.64	3	6	2
YC80c-4	0.75	0.55	220	50	6.0	1450	64	0.65	3	6	2
YC90S-4	1	0.75	220	50	7.7	1450	67	0.72	2.8	6.5	2
YC90L-4	1.5	1.1	220	50	10.5	1450	70	0.72	2.8	6.5	2
YC100L-4	2	1.5	220	50	13.5	1450	72	0.73	2.8	6.5	2
YC112M-4	3	2.2	220	50	19.3	1450	73	0.74	2.5	6.5	2
YC132Sa-4	4	3	220	50	25.2	1450	76	0.8	2.2	6.5	2
YC132Sb-4	5	3.7	220	50	30	1450	79	0.82	2.2	6.5	2
YC132M-4	7.5	5.5	220	50	32.5	1450	82	0.95	2.2	6.5	2
