PRODUCT OVERVIEW
YD series three-pahse multi-speed induction motors are one of the derived series of Y2 series induction motors of our national uniform design, it have following features: excellent performance, attractive appearance and good interchangeability for the same kind of products aborad. The protection class IP44.
The motors are designed in three types: double speed, three speed and four speed. These speed rotes can be changed in stages. The motors are widely used on applications in the equipments where the changed rates in stages are needed, such as mechanism, mine, metallurgy, textiles, printing and dyeing, chemical industry, agricultural etc. They can also simplify or take the place of reducting gearbox in the mechanical drive lines.

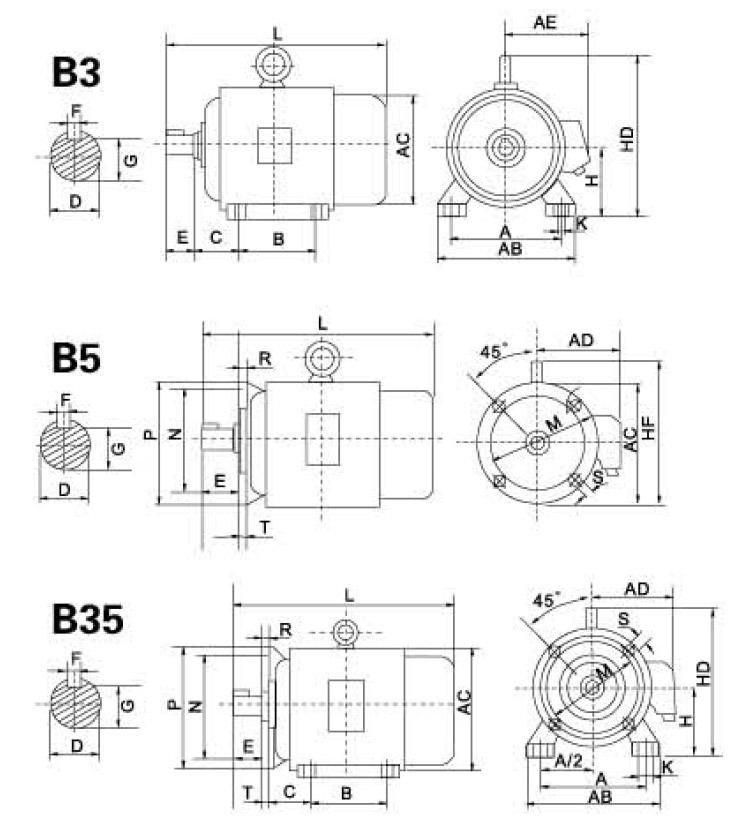

OVERALL & INSTALLTION DIEMSIONS

Frame size Mounting Dimensions(mm) Overall Dimensions(mm)
  A B C D E F G H K M N P R S T AB AC AD HD L
YD80 125 100 50 19 40 6 15.5 80 10 165 130 200 0 12 3.5 165 175 150 175 290
YD90S 140 100 56 24 50 8 20.0 90 10 165 130 200 0 12 3.5 180 195 160 195 315
YD90L 140 125 56 24 50 8 20.0 90 10 165 130 200 0 12 3.5 180 195 160 195 340
YD100L 160 140 70 28 60 8 24.0 100 12 215 180 250 0 15 4.0 205 215 180 245 380
YD112M 190 140 70 28 60 8 24.0 112 12 215 180 250 0 15 4.0 245 240 190 265 400
YD132S 216 140 89 38 80 10 33.0 132 12 265 230 300 0 15 4.0 280 275 210 315 475
YD132M 216 178 89 38 80 10 33.0 132 12 265 230 300 0 15 4.0 280 275 210 315 515
YD160M 254 210 108 42 10 12 37.0 160 15 300 250 350 0 19 5.0 325 325 255 385 600
YD160L 254 254 108 42 110 12 37.0 160 15 300 250 350 0 19 5.0 325 325 255 385 645
YD180M 279 241 121 48 110 14 42.0 180 15 300 250 350 0 19 5.0 355 360 285 430 670
YD180L 279 279 121 48 110 14 42.0 180 15 300 250 350 0 19 5.0 355 360 282 430 710
YD200L 318 305 133 55 110 16 49.0 200 19 350 300 400 0 19 5.0 395 400 310 475 775
YD225S 356 286 149 60 140 18 53.0 225 19 400 350 450 0 19 5.0 435 470 345 520 820
YD225M 356 311 149 60 140 18 53.0 225 19 400 350 450 0 19 5.0 435 515 345 520 845
YD250M 406 349 168 65 140 18 58.0 250 24 500 450 550 0 19 5.0 490 515 385 575 930


TECHNICAL DATE

Frame size Speed (r/min) (kW) Current (A) EFF (%) Power Factor(%) Stall current Rated current lst/ln Stall torque Tstart/Tn Maximum torque Rated torque Tmax/Tn
YD801 4 1420 0.45 1.4 66 0.74 6.5 1.5 1.8
2 2860 0.55 1.5 65 0.85 7 1.6 1.8
YD802 4 1420 0.55 1.7 68 0.74 6.5 1.5 1.8
2 2860 0.75 2.0 66 0.85 7 1.6 1.8
YD90S 4 1430 0.85 2.3 74 0.77 6.5 1.5 1.8
2 2850 1.1 2.8 73 0.84 7 1.6 1.8
YD90L 4 1430 1.3 3.3 76 0.78 6.5 1.5 1.8
2 2850 1.8 4.3 74 0.84 7 1.6 1.8
YD100L1 4 1430 2 4.8 78 0.81 6.5 1.5 1.8
2 2850 2.4 5.6 76 0.86 7 1.6 1.8
YD100L2 4 1430 2.4 5.6 79 0.83 6.5 1.5 1.8
2 2850 3 6.7 77 0.89 7 1.6 1.8
YD112M 4 1450 3.3 7.4 81 0.83 6.5 1.5 1.8
2 2860 4 8.6 80 0.88 7 1.6 1.8
YD132S 4 1450 4.5 9.8 83 0.84 6.5 1.5 1.8
2 2860 5.5 11.9 79 0.88 7 1.6 1.8
YD132M 4 1450 6.5 13.8 84 0.85 6.5 1.5 1.8
2 2880 8 17.1 80 0.89 7 1.6 1.8
YD160M 4 1460 9 18.5 87 0.85 6.5 1.5 1.8
2 2920 11 22.9 82 0.89 7 1.6 1.8
YD160L 4 1460 11 22.3 87 0.86 6.5 1.5 1.8
2 2920 14 28.8 82 0.90 7 1.6 1.8
YD180M 4 1470 15 29.4 89 0.87 6.5 1.5 1.8
2 2940 18.5 36.7 85 0.90 7 1.6 1.8
YD180L 4 1470 18.5 35.9 89 0.88 6.5 1.5 1.8
2 2940 22 42.7 86 0.91 7 1.6 1.8
YD200L 4 1470 26 49.9 89 0.89 6.5 1.4 1.8
2 2950 30 58.3 85 0.92 7 1.4 1.8
YD225S 4 1480 32 60.7 90 0.89 6.5 1.4 1.8
2 2960 37 71.7 86 0.92 7 1.4 1.8
YD225M 4 1480 37 69.4 91 0.89 6.5 1.4 1.8
2 2960 45 86.4 87 0.92 7 1.4 1.8
YD250M 4 1480 45 84.4 91 0.89 6.5 1.4 1.8
2 2960 55 103.2 88 0.92 7 1.4 1.8
YD280S 4 1480 60 111.3 91 0.90 6.5 1.4 1.8
2 2970 72 135.1 88 0.92 7 1.4 1.8
YD280M 4 1480 72 133.6 91 0.90 6.5 1.4 1.8
2 2970 82 152.2 88 0.93 7 1.4 1.8
YD90S 6 920 0.65 2.2 64 0.70 6 1.4 1.8
4 1420 0.85 2.3 70 0.79 6.5 1.3 1.8
YD90L 6 930 0.85 2.8 66 0.70 6 1.4 1.8
4 1420 1.1 3.0 71 0.79 6.5 1.3 1.8
YD100L1 6 940 1.3 3.8 74 0.70 6 1.4 1.8
4 1440 1.8 4.4 77 0.80 6.5 1.3 1.8
YD100L2 6 940 1.5 4.3 75 0.70 6 1.4 1.8
4 1440 2.2 5.4 77 0.80 6.5 1.4 1.8
YD112M 6 960 2.2 5.7 77 0.75 6 1.4 1.8
4 1440 2.8 6.7 77 0.82 6.5 1.3 1.8
YD132S 6 960 3 7.7 79 0.70 6 1.4 1.8
4 1440 4 9.5 80 0.82 6.5 1.3 1.8
YD132M 6 960 4 9.8 81 0.76 6 1.4 1.8
4 1440 5.5 12.3 80 0.85 6.5 1.3 1.8
YD160M 6 970 6.5 15.1 84 0.78 6 1.4 1.8
4 1460 8 17.4 83 0.85 6.5 1.3 1.8
YD160L 6 970 9 20.6 85 0.78 6 1.4 1.8
4 1460 11 23.4 84 0.85 6.5 1.3 1.8
YD180M 6 980 11 25.9 85 0.78 6 1.4 1.8
4 1470 14 29.8 85 0.85 6.5 1.3 1.8
　 6 980 13 29.4 86 0.78 6 1.4 1.8
YD180L 4 1460 16 33.6 85 0.85 6.5 1.3 1.8
　 6 980 18.5 41.4 87 0.78 　 1.4 1.8
YD200L 4 1460 22 44.7 87 0.86 6.5 1.3 1.8
YD225S 6 980 22 44.2 88 0.86 6.5 1.4 1.8
4 1470 28 56.2 87 0.87 7 1.3 1.8
　 6 980 26 52.2 88 0.86 6.5 1.4 1.8
YD225M 4 1470 34 66.0 87 0.90 7 1.3 1.8
　 6 980 32 62.1 90 0.87 6.5 1.4 1.8
YD250M 4 1470 42 74.7 88 0.91 7 1.3 1.8
　 6 980 42 81.5 90 0.87 6.5 1.4 1.8
YD280S 4 1480 55 104.2 89 0.90 7 1.3 1.8
　 6 680 55 106.7 90 0.87 6.5 1.4 1.8
YD280M 4 1420 72 138.1 89 0.89 7 1.3 1.8
YD90L 8 700 0.45 1.9 58 0.63 5.5 1.5 1.8
4 1420 0.75 1.92 72 0.87 6.5 1.5 1.8
　 8 700 0.85 3.1 68 0.63 5.5 1.5 1.8
YD100L 4 1420 1.5 3.5 75 0.88 6.5 1.5 1.8
　 8 700 1.5 5.0 72 0.63 5.5 1.5 1.8
YD112M 4 1420 2.4 5.3 78 0.88 6.5 1.5 1.8
　 8 720 2.2 7.0 75 0.64 5.5 1.5 1.8
YD132S 4 1440 3.3 7.1 80 0.88 6.5 1.5 1.8



机座号 Frame size 转速 Speed (r/min) 炭率 Output (kW) 电流 Current (A) 曾 (%) (%) 堵转电流 额定电流 lst/ln 堵转转矩 额定转矩 Tstart/Tn 最大转矩 额定转矩 Tmax/Tn
YD132M 8 720 3 9.0 78 0.65 5.5 1.5 1.8
4 1440　 4.5 9.4 82 0.88 6.5 1.5 1.8
YD160M 8 730 5 13.9 83 0.66 5.5 1.5 1.8
4 1450 7.5 15.2 84 0.89 6.5 1.5 1.8
YD160L 8 730 7 19.0 85 0.66 5.5 1.5 1.8
4 1450 11 21.8 86 0.89 6.5 1.5 1.8
YD180L 8 730 11 26.0 86 0.74 6 1.5 1.8
4 1470 17 31.5 87 0.92 7 1.5 1.8
YD200L1 8 740 14 33.0 86 0.74 6 1.5 1.8
4 1470 22 41.3 88 0.92 7 1.5 1.8
YD200L2 8 740 17 40.1 87 0.74 6 1.5 1.8
4 1470 26 48.8 88 0.92 7 1.5 1.8
YD225M 8 740 24 53.2 89 0.77 6 1.4 1.8
4 1480 34 66.7 88 0.88 7 1.3 1.8
YD250M 8 740 30 64.9 90 0.78 6 1.4 1.8
4 1480 42 78.8 89 0.91 7 1.3 1.8
YD280S 8 740 40 83.5 91 0.80 6 1.4 1.8
4 1480 55 102 90 0.91 7 1.3 1.8
YD280M 8 680 47 96.9 91 0.81 6 1.4 1.8
4 930 67 122.9 90 0.92 7 1.3 1.8
YD90S 8 680 0.35 1.6 56 0.60　 5 1.4 1.8
6 930 0.45 1.4 70 0.72 6 1.3 1.8
YD90L 8 710 0.45 1.9 59 0.60 5 1.5 1.8
6 950 0.65 1.9 71 0.73 6 1.5 1.8
YD100L 8 710 0.75 2.9 65 0.60 5 1.5 1.8
6 950 1.1 3.1 75 0.73 6 1.5 1.8
YD112M 8 710 1.3 4.5 72 0.61 5 1.5 1.8
6 950 1.8 4.8 78 0.73 6 1.5 1.8
YD132S 8 730 1.8 5.8 75 0.62 5 1.5 1.8
6 970 2.4 6.2 80 0.73 6 1.5 1.8
YD132M 8 730 2.6 8.2 78 0.62 5 1.5 1.8
6 970 3.7 9.4 82 0.73 6 1.5 1.8
YD160M 8 930 4.5 13.3 83 0.62 5 1.5 1.8
6 980 6 14.7 85 0.73 6 1.5 1.8
YD160L 8 930 6 17.5 84 0.62 5 1.5 1.8
6 980 8 19.4 86 0.73 6 1.5 1.8
YD180M 8 930 7.5 21.9 84 0.62 5 1.5 1.8
6 980 10 24.2 86 0.73 6 1.5 1.8
YD180L 8 730 9 24.8 85 0.65 5 1.5 1.8
6 980 12 28.3 86 0.75 6 1.5 1.8
YD200L1 8 730 12 32.5 86 0.65 5 1.5 1.8
6 980 17 39.1 87 0.76 6 1.5 1.8
YD200L2 8 730 15 40.3 87 0.65 5 1.5 1.8
6 980 20 45.4 88 0.76 6 1.5 1.8
YD100L 6/4/2 940/1420/2880 0.75/1.3/1.8 2.62/3.66/4.53 67/72/71 0.65/0.75/0.85 5.5/6/7 1.8/1.6/1.6 1.8/1.8/1.8
YD112M 6/4/2 940/1440/2890 1.1/2/2.4 3.52/5.14/5.80 73/74/74 0.65/0.81/0.85 5.5/6/7 1.7/1.4/1.6 1.8/1.8/1.8
YD132S 6/4/2 940/1440/2900 1.8/2.6/3 5.14/6.10/7.38 75/78/71 0.71/0.83/0.87 5.5/6/7 1.4/1.3/1.7 1.8/1.8/1.8
YD132M1 6/4/2 940/1440/2900 2.2/3.3/4 6.03/7.46/8.79 77/80/76 0.72/0.84/0.91 5.5/6/7 1.3/1.3/1.7 1.8/1.8/1.8
YD132M2 6/4/2 940/1440/2900 2.6/4/5 6.86/9.04/10.8 80/80/77 0.72/0.84/0.91 5.5/6/7 1.5/1.4/1.7 1.8/1.8/1.8
YD160M 6/4/2 940/1440/2900 3.7/5/6 9.52/11.2/13.2 81/81/76 0.72/0.84/0.91 5.5/6/7 1.5/1.3/1.4 1.8/1.8/1.8
YD160L 6/4/2 940/1440/2930 4.5/7/9 11.4/15.1/18.8 83/83/79 0.72/0.85/0.92 5.5/6/7 1.5/1.2/1.3 1.8/1.8/1.8
YD112M 6/4/2 940/1440/2930 0.65/2/2.4 2.66/5.14/5.80 59/74/74 0.63/0.81/0.85 4.5/6/7 1.4/1.3/1.2 1.8/1.8/1.8
YD132S 8/4/2 710/1440/2900 1/2.6/3 3.16/6.10/7.08 69/78/74 0.61/0.83/0.87 4.5/6/7 1.4/1.2/1.4 1.8/1.8/1.8
YD132M 8/4/2 710/1440/2900 1.3/3.7/4.5 4.56/8.37/10.0 71/80/75 0.61/0.84/0.91 4.5/6/7 1.5/1.3/1.4 1.8/1.8/1.8
YD160M 8/4/2 710/1440/2900 2.2/5/6 7.55/11.2/13.2 75/81/76 0.59/0.84/0.91 4.5/6/7 1.4/1.3/1.4 1.8/1.8/1.8
YD160L 8/4/2 720/1460/2930 2.8/7/9 9.21/15.10/18.80 77/83/79 0.60/0.85/0.92 5.5/6.5/7 1.3/1.2/1.3 1.8/1.8/1.8
YD112M 8/4/2 710/940/1400 0.85/1/1.5 3.72/3.06/3.53 62/68/75 0.56/0.73/0.86 5.5/6.5/7 1.4/1.2/1.4 1.8/1.8/1.8
YD132S 8/6/4 710/940/1440 1.1/1.5/1.8 4.10/4.22/4.03 68/74/78 0.60/0.73/0.87 5.5/6.5/7 1.4/13/1.3 1.8/1.8/1.8
YD132M1 8/6/4 710/940/1440 1.5/2/2.2 5.18/5.41/4.87 71/77/79 0.62/0.73/0.87 5.5/6.5/7 1.3/1.5/1.4 1.8/1.8/1.8
YD132M2 8/6/4 720/970/1460 1.8/2.6/3 6.13/6.84/6.55 72/78/80 0.62/0.74/0.87 5.5/6.5/7 1.5/1.5/1.5 1.8/1.8/1.8
YD160M 8/6/4 720/970/1460 3.3/4/5.5 10.2/9.87/11.6 79/81/83 0.62/0.78/0.87 5.5/6.5/7 1.7/1.4/1.5 1.8/1.8/1.8
YD160L 8/6/4 720/970/1460 4.5/6/7.5 13.8/14.5/15.6 80/83/84 0.62/0.76/0.87 5.5/6.5/7 1.6/1.6/1.5 1.8/1.8/1.8
